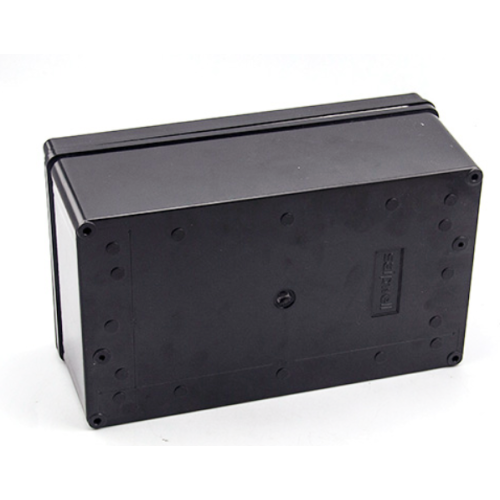

Plastic Injection Mold For Electrical Junction Box

Payment Type:L/C,T/T,D/P

Incoterm:FOB,CFR,CIF,CPT,DDP,DDU,CIP,DES,EXW,FAS,FCA,DAF,Express Delivery

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Port:Ningbo,Shanghai

$3500-6000 /Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Model No.: CT-202109

Brand: Ceeto

Place Of Origin: China

Forming Method: Plastic Injection Mould

Product Material: Plastic

Product: Household Product

Surface Finishing Process Is Graining Or Texture: Design Software Can Be Pro-E.

Supply Ability & Additional Information

Packaging: Wooden box

Productivity: 500000shots/mold life- 1000000

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30sets/month

Certificate: ISO

HS Code: 8480790090

Port: Ningbo,Shanghai

Payment Type: L/C,T/T,D/P

Incoterm: FOB,CFR,CIF,CPT,DDP,DDU,CIP,DES,EXW,FAS,FCA,DAF,Express Delivery

Packaging & Delivery

Selling Units:

Piece/Pieces

Package Type:

Wooden box

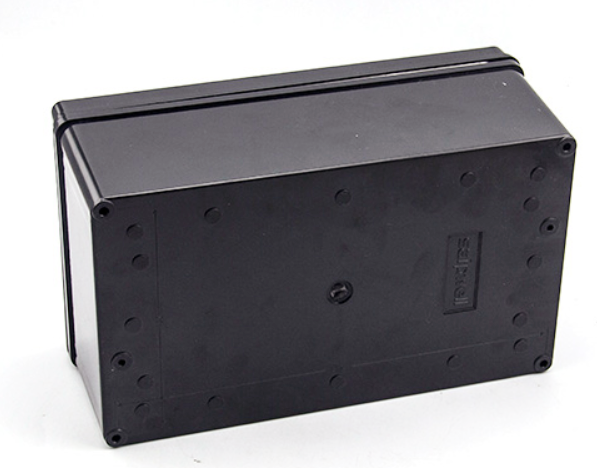

The plastic electrical junction box an assembly plastic part, which is composed of a plastic cover encloser or enclosure and a base bottom. The plastic electrical junction box injection molds require two or three sets of injection molds. Domestic P20 materials or more harden steel material are used for die concave and punch steel. The cold runner is injected normal or hot runner system can be applied which depends on mold life requirements and the forming cycle is about 40 seconds. Plastic electrical switch box is fast becoming the standard material for electrical boxes, especially for do-it-yourself work. Plastic boxes are lightweight, cheap, and simple to work with. Holes are easy to punch out in the back or sides. ABS or PVC can melt when subjected to sufficiently high temperatures but it does not conduct electricity. Many plastic boxes come with built-in clamps for the wires, further lowering overall project cost.

Electrical switch plastic box for ABS

Waterproof plastic box for electrical switch

Here are some technical information for reference before you are going to ask us to make plastic injection molds, as follows:
Material: ABS or PVC fire resistance

waterproof: IP66
Dimensions (outer): 100 X 68 X 50mm, dimension can be customized according to your requirement.
Color: White or black, color can be customized.
Package includes: 1 X Waterproof Plastic Junction Box

Excellent plastic box for electrical switch

FAQ

Q1: Which kind technical information needed for making plastic injection mold quotation or plastic part quotation?
1) Sample photos with size or 2D CAD drawing/3D model design
2) Product material
3) The monthly quantity or yearly quantity
4) Runner type, cold or hot runner system, if hot runner, we work with Synventive, Yudo, HRS, Mold-master etc.
5) Plastic Injection Mold steel type, P20, 718, 2738, H13, S136, 2316, and so on.

Q2: If product 3D model is not available , how should I start new project?
A2: You can supply us a sample or tell me your idea, we will help to model part 3D drawing design by scanning or 3D printing technology.

Q3: How long will be Waterproof Plastic Electronic Junction Box mold finished?

A3: Usually it will take about 6 weeks to finish this plastic injection mold from plastic mold design approval to the first mold testing, which normally we call T0.

Q4: How about Waterproof Plastic Electronic Junction Box samples?

A4: After mold finished, we will make some samples for you to check as soon as we finish the mold and then deliver the samples for you to check.

Q5: How about plastic injection mold engineer changes or modifications?
A5: You can tell us your comment about samples after you receive them. If there is any dimension different from the drawing, we will modify plastic mold for free in our side and then make new samples.

Q6: How about the proprietary rights of the plastic injection mold?
A6: Customer paid for plastic injection mold development so it all belongs to Customer.

Q7: How about the surface treatment?
A7: Metallization (chrome, gold, silver) / Painting (hand, screen, automated) /Vacuum plating / Lithography / Custom texturing/ Hydrographic.
